Products

Disaster Prevention (High Performance Products Business Division)

Fire Hoses

New Pressure-Damage-Resistant HoseDolphin Ace α・Dia α

The Dolphin Ace α・Dia α employs Ashimori’s proprietary technology for internal hose smoothing with resin coating, resulting in a hose that is resistant to pressure damage. Because pressure damage is minimized, more hoses can be connected and water can be supplied at greater distances.

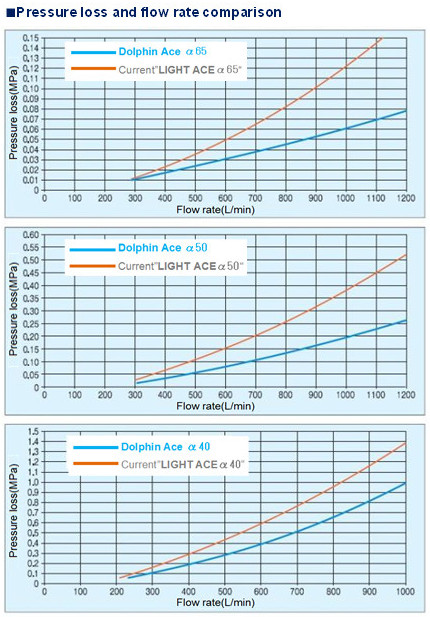

Dolphin Ace α

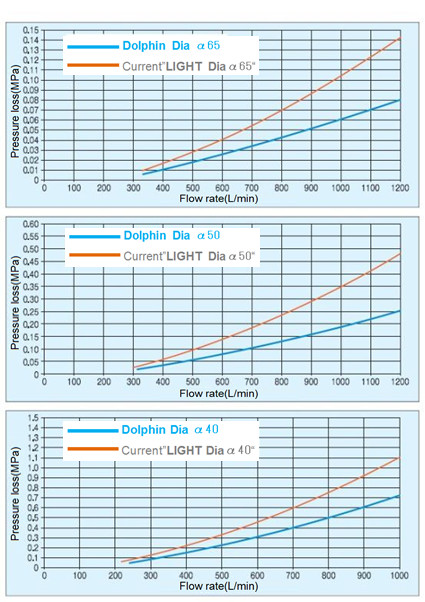

Dolphin Dia α

Recommended by the Fire Equipment and Safety Center of Japan (General Incorporated Foundation)

TOPICS

The Dolphin Ace α・Dia α is the first fire hose to receive the "Recommended" label for fire and disaster prevention products from the Fire Equipment and Safety Center of Japan. This "Recommended" label is granted only to products that are certified as effective in the field of fire and disaster prevention, and is proof that a product has satisfied specific criteria for contributing to factors such as convenience, effectiveness, and safety in the field of fire prevention.
[The Dolphin Ace α・Dia α received the "Recommended" label for fire and disaster prevention products on March 1, 2016 from the Fire Equipment and Safety Center of Japan (General Incorporated Foundation).]

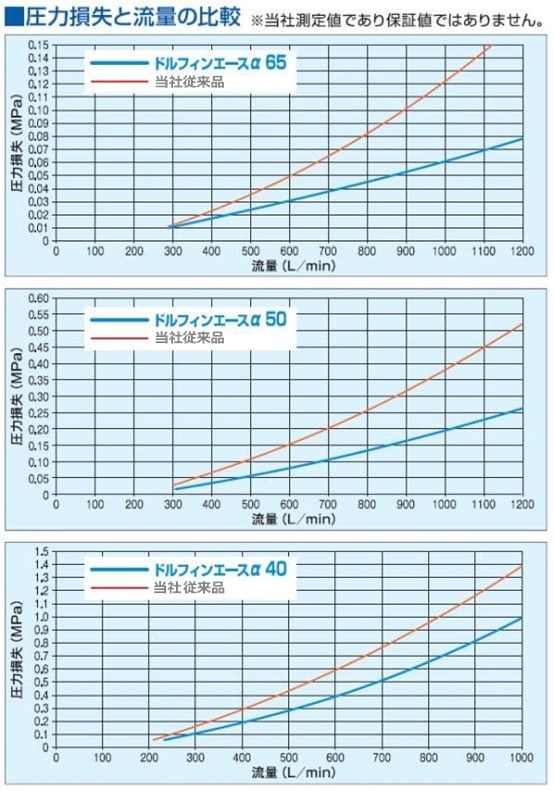

Dolphin Ace α

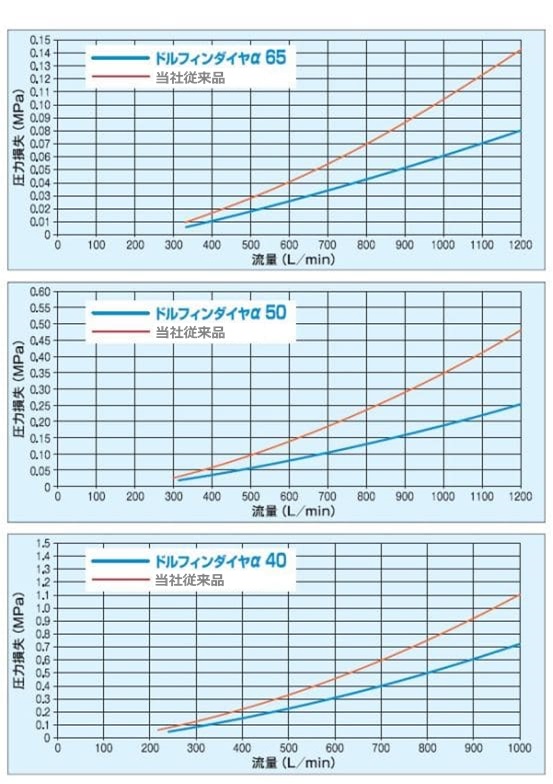

Dolphin Dia α

Specifications

Product Dolphin Ace α
Working pressure 1.6MPa
Number 655040
Weight 330±10g/m270±10g/m215±10g/m
Weave TwillTwillTwill
Reel diameter 38.5cm38.0cm36.0cm
Product Dolphin Dia α
Working pressure 1.3MPa
Number 655040
Weight 295±10g/m235±10g/m175±10g/m
Weave TwillTwillTwill
Reel diameter 36.5cm36.0cm35.0cm
  • Note: Specifications are subject to change without prior notice in order to improve quality.

Dolphin Ace α water-discharge test videos [in-house experiment] demonstrate the difference in water discharge distance

On the left (near the cars), 5 Dolphin Ace α connected;
on the right, 5 current Light Ace connected
*Test condition: pump pressure of 0.4MPa

On the left (near the cars), 5 Dolphin Ace α connected;
on the right, 3 current Light Ace connected
*Test condition: pump pressure of 0.4MPa
