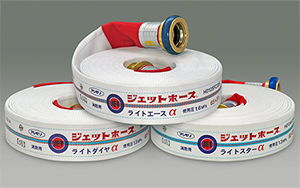

The Standard for Light, Twill-Weave Fire HosesLight α Series

Made of a twill-weave jacket and dual-layer engineering plastic, the Light α Series is both tough and flexible: a true standard in fire hoses.

Twill-Weave Jacket

The warp-to-weft ratio is 2-to-1. This helps protect the weft, thus improving abrasion resistance. It also results in fewer warp-weft crossings and thus a more flexible hose.

Features

Flexible and Easy to Handle

The twill-weave jacket is characterized by a flexibility that helps reduce firefighters’ fatigue and aids in quick response to fires.

Light and Compact

The dual layer of engineering plastic means the highly durable elastomer provides a thin lining that contributes to a light, compact hose.

Tough and Resistant to Scratches and Abrasion

The hose’s flexibility means it is highly resistant to kinking and thus less susceptible to the abrasion that comes with such kinking.

Specifications

Product	Light Ace α
Working pressure	1.6MPa
Number	65	50	40
Weight	300±10g/m	245±10g/m	190±10g/m
Weave	Twill	Twill	Twill
Reel diameter	35cm	33cm	33cm

Product	Light Dia α
Working pressure	1.3MPa
Number	65	50	40
Weight	280±10g/m	230±10g/m	170±10g/m
Weave	Twill	Twill	Twill
Reel diameter	33cm	33cm	33.5cm

Product	Light Star α
Working pressure	1.3MPa
Number	65	50	40
Weight	280±10g/m	225±10g/m	165±10g/m
Weave	Twill	Twill	Twill
Reel diameter	33cm	33cm	33.5cm

Note: Specifications are subject to change without prior notice in order to improve quality.
