Surface Stabilization MethodPalace Sheet

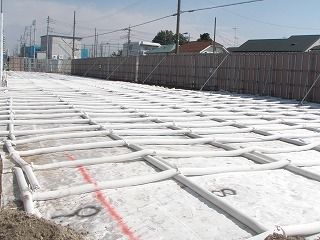

Palace Sheet consists of jackets, mortar, and sheets. By filling special mortar in the jackets assembled in a lattice shape, a lattice-shaped reinforcement frame with high rigidity can be easily formed.

The Palace Sheet method is dispersing the load by the lattice-shaped reinforcement frame and it prevents the settlement of the building on the soft ground.

パレスシート

Specification

Jacket Diameter Straight part100mm
Expanded part150mm
Tensile strength 130kN/m
Construction sheets Tensile strength 700kN/m
Thickness 0.38mm
Palace Sheet mortar Compressive strength
(three days of material age)		 20N/mm²
  • ※ Specifications may be changed without prior notice to improve quality.

Example of construction

A temporary road (detour) on paddy fields/ Construction of roadbeds (Suwa City, Nagano Prefecture)）

パレスシート

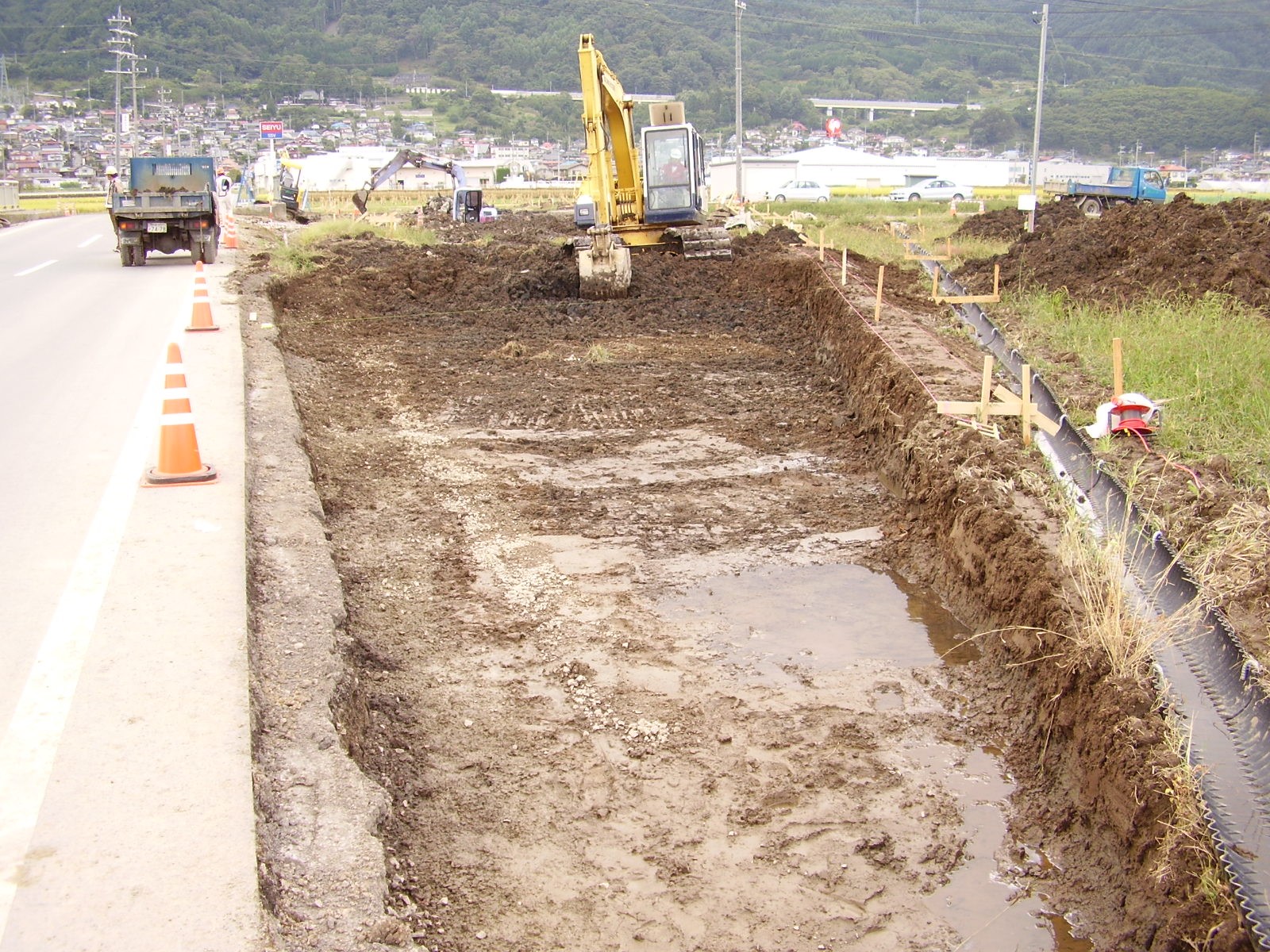

Excavation

パレスシート

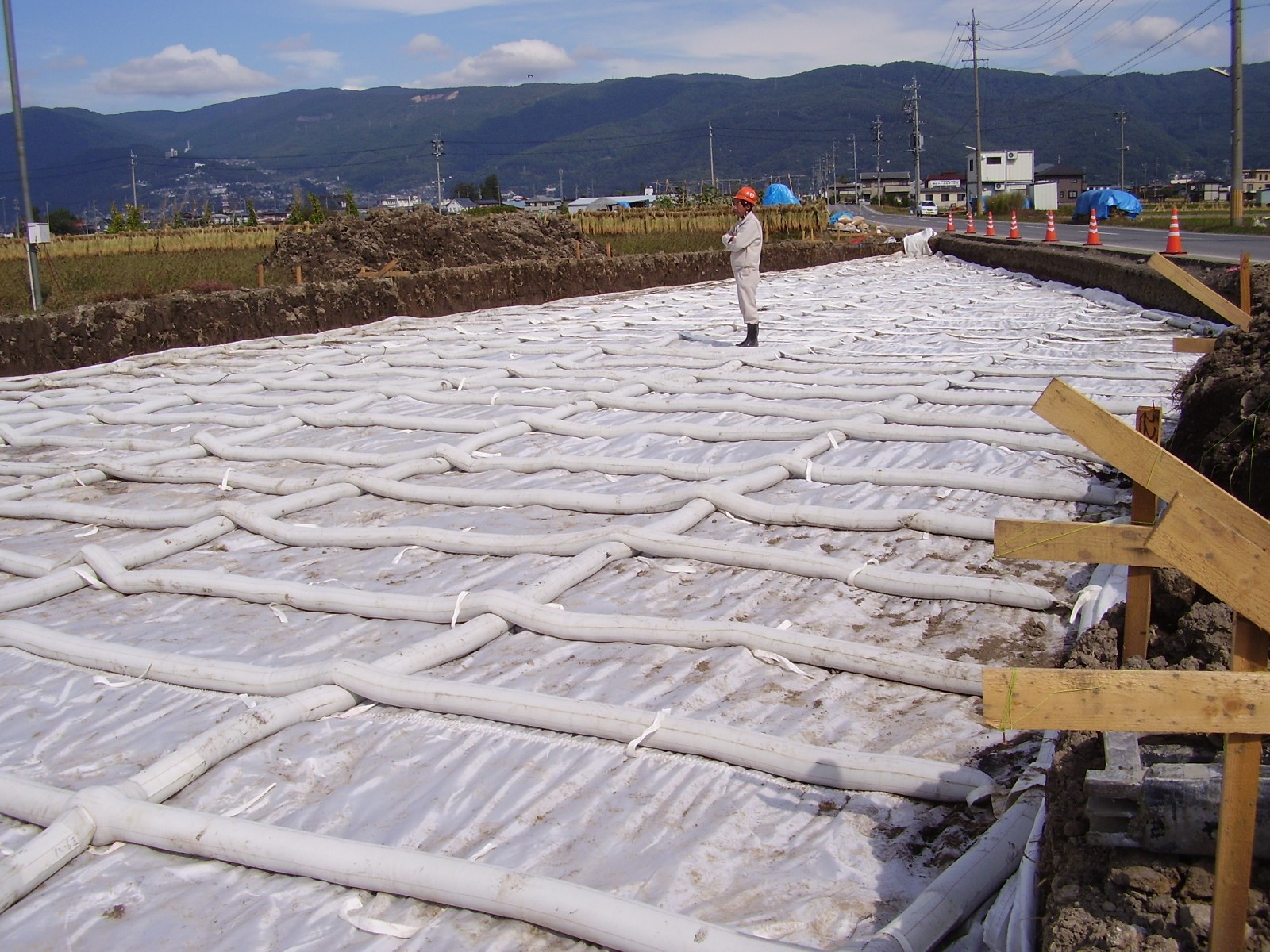

After mortar filling

パレスシート

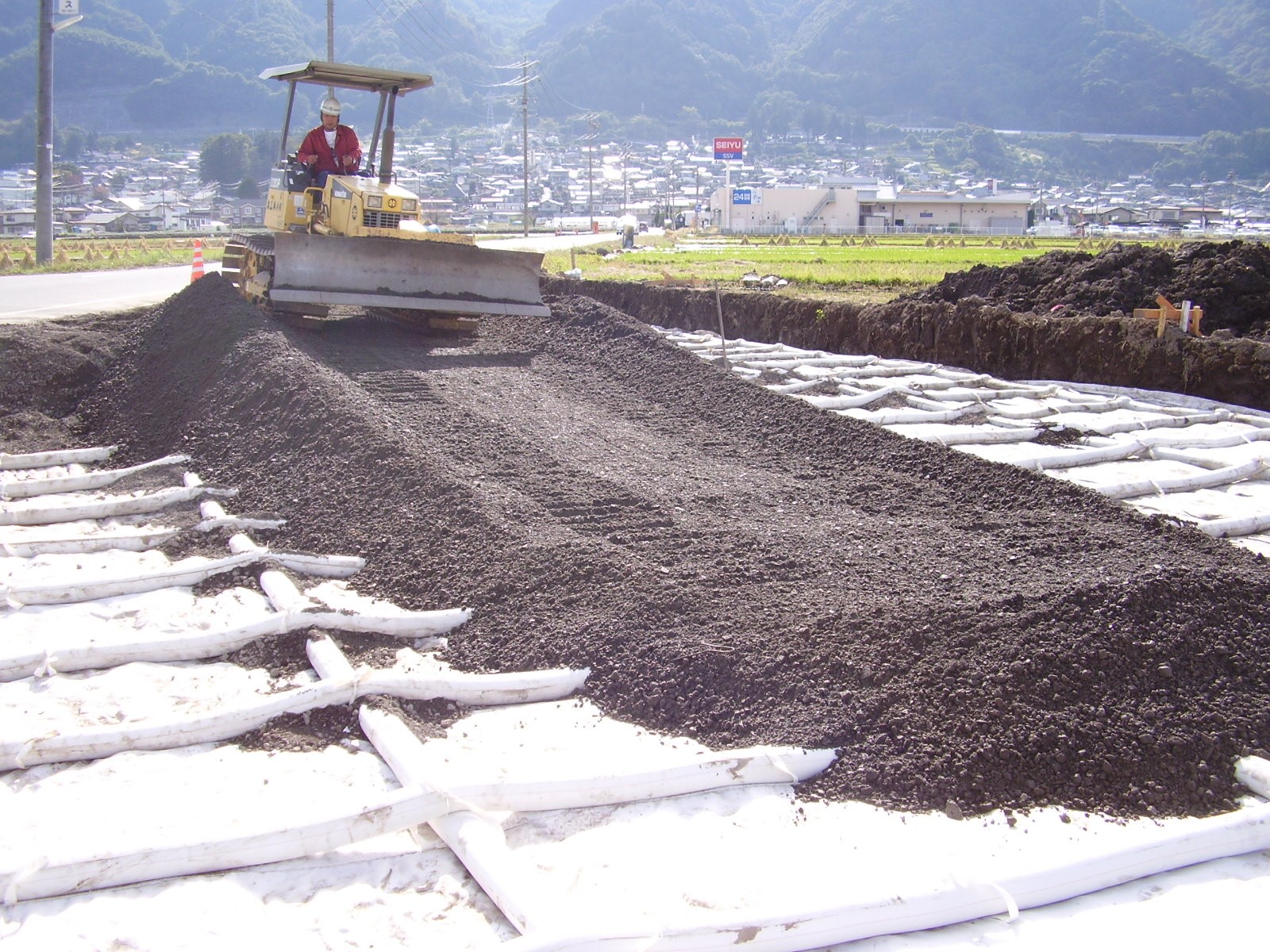

Crushed stone leveling

パレスシート

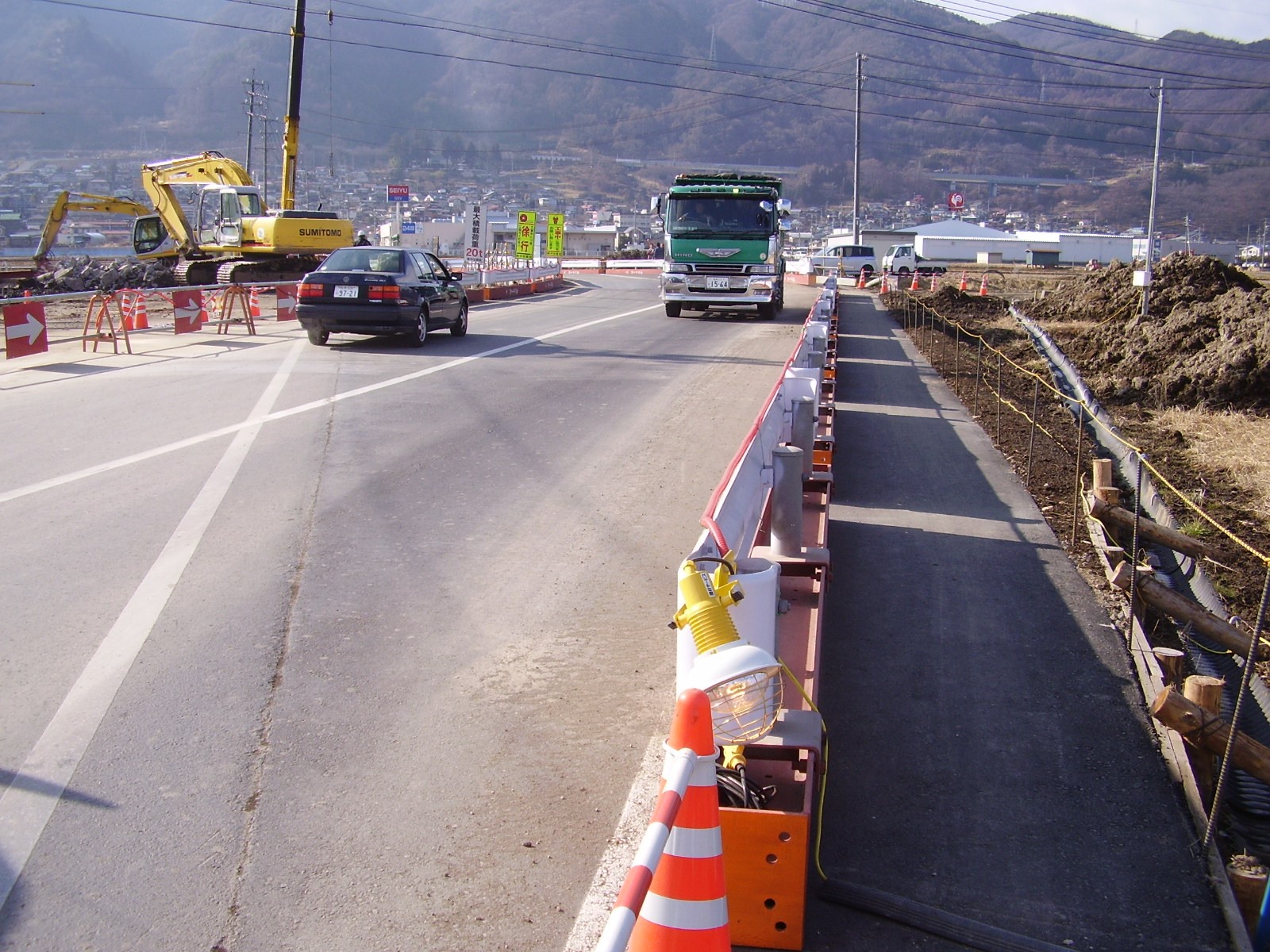

Completion of a detour

●Lattice Frame Reinforcement(LFR) method
